Need help identifying antenna

Post by Mercenary »

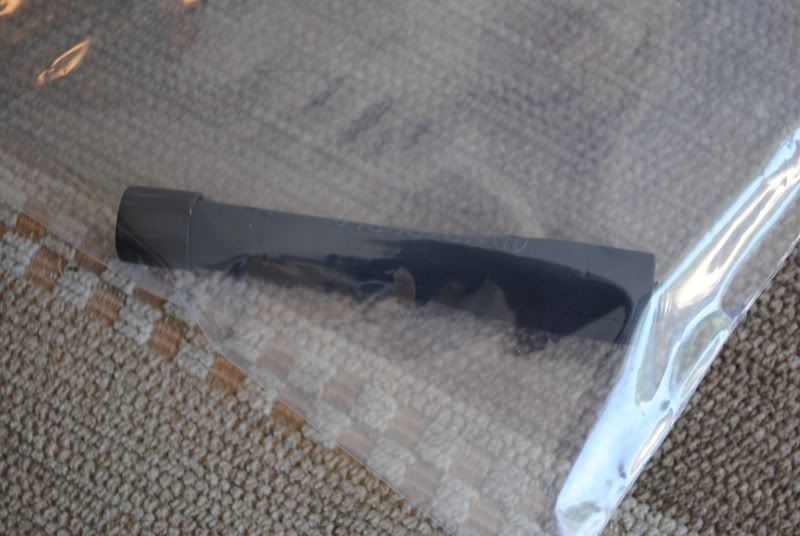

Can anyone tell me what the band and frequency coverage is for the Motorola antenna below?

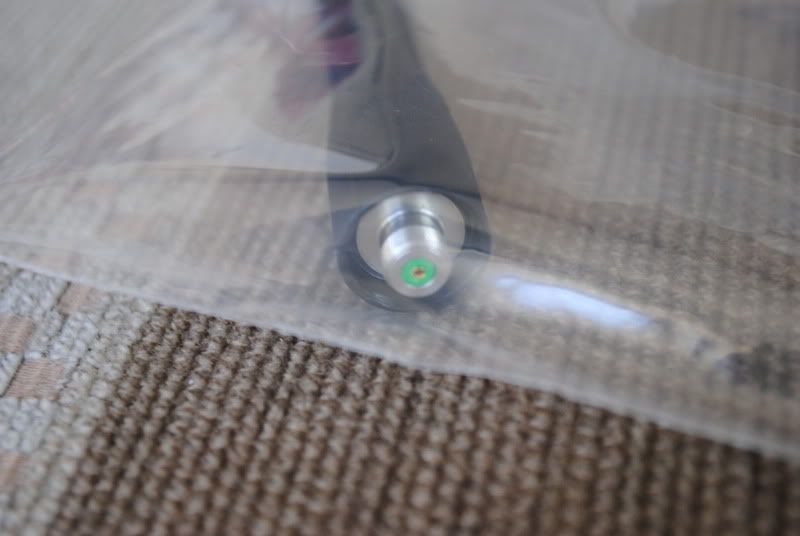

It has a green color code and looks like the connector will fit the HT1000, JT1000, XTS radios.


Top
RadioSouth
Batboard $upporter
Posts: 2884
Joined: Mon Sep 03, 2001 4:00 pm

Re: Need help identifying antenna

Post by RadioSouth »

UHF mid band 435-470
Top
User avatar
Tom in D.C.
Posts: 3859
Joined: Tue Sep 04, 2001 4:00 pm
What radios do you own?: Progreso soup can with CRT

Re: Need help identifying antenna

Post by Tom in D.C. »

Exactly right. No doubt about it.
Tom in D.C.
In 1920, the U.S. Post Office Department ruled
that children may not be sent by parcel post.
Top
User avatar
Mercenary
Posts: 163
Joined: Sun Sep 23, 2001 4:00 pm
What radios do you own?: Motorola XTS3000

Re: Need help identifying antenna

Post by Mercenary »

Thanks
