Which cable???????

nova1010 · Post by **nova1010** » Fri Jul 27, 2012 10:50 pm

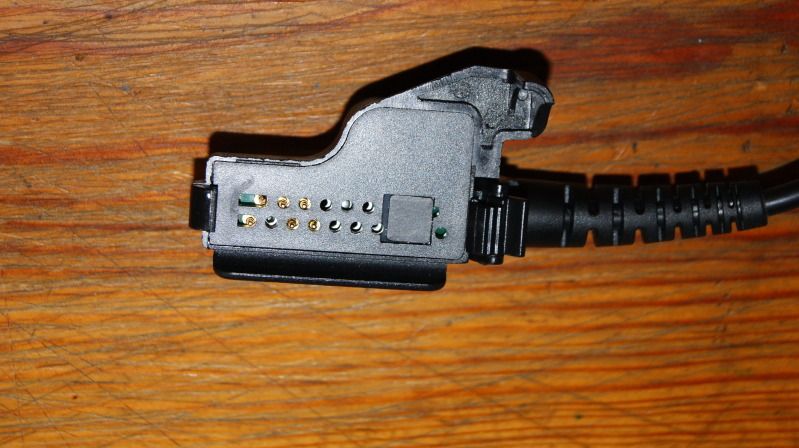

A friend gave me this cable can anyone tell me which Motorola radio it's for?

kt2728 · Post by **kt2728** » Fri Jul 27, 2012 11:28 pm

what does the rest of it look like?

Jim202 · Post by **Jim202** » Sat Jul 28, 2012 7:34 am

That looks like it is for the XTS series radios. Need to know if there is a part number on the cable and what the other end of it looks like.

Jim

HLA · Post by **HLA** » Sat Jul 28, 2012 7:44 am

what's on the other end? could be ht1000, mts2000, xts? but if somebody just gave it to you it's probablly for an ht1000. if the other end is usb and it's a factory cable then it's for the xts's

FireCpt809 · Post by **FireCpt809** » Sat Jul 28, 2012 11:11 am

or EF Johnson 5100 51SL...

AEC · Post by **AEC** » Sat Jul 28, 2012 12:01 pm

Regardless of the type of connection on the computer end, the radio connector is for a Jedi or XTS, or also an E.F Johnson.
There is also a probability it can also be used with a Datron as well.

Will · Post by **Will** » Sat Jul 28, 2012 8:10 pm

It is NOT XTS. Pins in the wrong place.

n7maq · Post by **n7maq** » Sat Jul 28, 2012 9:10 pm

the pins match my factory EFJ cable, no more, no less. Also the EFJ's support RS232 comms so no level converters needed.

Jim202 · Post by **Jim202** » Sun Jul 29, 2012 9:32 am

n7maq wrote:the pins match my factory EFJ cable, no more, no less. Also the EFJ's support RS232 comms so no level converters needed.

If this is the case, it will not work on any Motorola portable radios. Just connect it to the 9 pin serial port and go for it. Next problem you will have is getting the right version of the software to match your portable.

Jim

wx4cbh · Post by **wx4cbh** » Sun Jul 29, 2012 9:36 am

I'm with Will. If it's a programming cable, it definitely does not match any of the XTS programming cables I have, Rib type or RIBless. Real good chance n7maq is on to something as it matches the hand written pinout I have for the EFJ 51xx.

FireCpt809 · Post by **FireCpt809** » Sun Jul 29, 2012 10:34 am

I just looked at my EFJ cable.. the pins match. I bet its a Kawa cable.

AEC · Post by **AEC** » Sun Jul 29, 2012 3:25 pm

Okay, here IS an XTS/MTS programming accy. port connection.

Uploaded with ImageShack.us

HLA · Post by **HLA** » Sun Jul 29, 2012 6:28 pm

my factory xts cable has two cables coming out of the radio connector, the white cable is usb and the black one is a 25 pin and has part number rkn4105a and has 9 of the 16 pins in the radio connector. my ht1000 cable only has 3 of the 16 pins.

FireCpt809 · Post by **FireCpt809** » Sun Jul 29, 2012 8:29 pm

My OEM rs232 XTS cable has all but one slot filled. My OEM Jedi/XTS3000 has all the pins
