A while back someone posted a diagram of the programming cable
pin connections for the Thales (Racal) T25 portable but I can't find it.
Can some kind soul please locate it for me? Thanks.
OT - Thales Programming Cable Diagram
Moderator: Queue Moderator
-
Tom in D.C.
- Posts: 3859
- Joined: Tue Sep 04, 2001 4:00 pm
- What radios do you own?: Progreso soup can with CRT
OT - Thales Programming Cable Diagram
Tom in D.C.
In 1920, the U.S. Post Office Department ruled
that children may not be sent by parcel post.
In 1920, the U.S. Post Office Department ruled
that children may not be sent by parcel post.
Re: OT - Thales Programming Cable Diagram

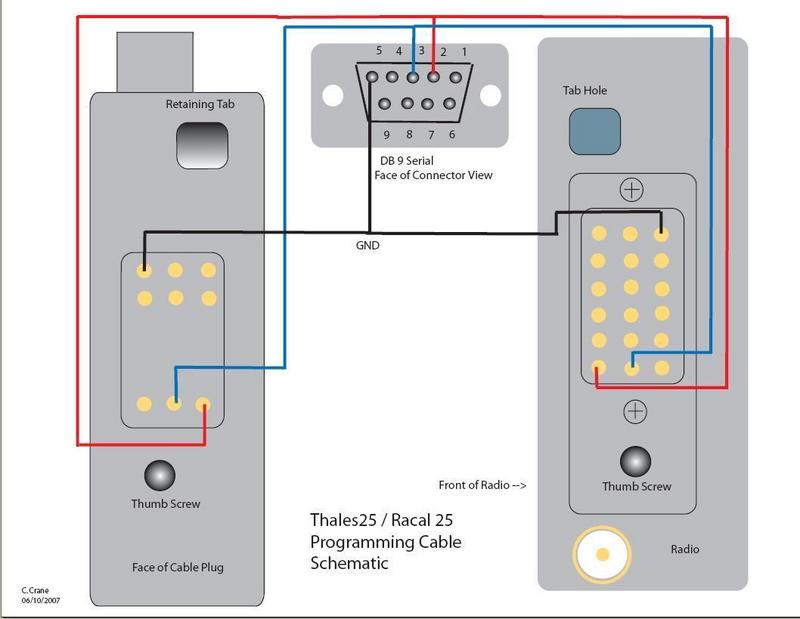

Tom in D.C. wrote:A while back someone posted a diagram of the programming cable
pin connections for the Thales (Racal) T25 portable but I can't find it.
Can some kind soul please locate it for me? Thanks.
Jim
-
Tom in D.C.
- Posts: 3859
- Joined: Tue Sep 04, 2001 4:00 pm
- What radios do you own?: Progreso soup can with CRT
Re: OT - Thales Programming Cable Diagram
Jim,
That's it. Many thanks.
73,
That's it. Many thanks.
73,
Tom in D.C.
In 1920, the U.S. Post Office Department ruled
that children may not be sent by parcel post.
In 1920, the U.S. Post Office Department ruled
that children may not be sent by parcel post.
Re: OT - Thales Programming Cable Diagram
You may want to join the Thales25 group on Yahoo. Lots of intresting stuff in the files section.
Chris
N9LLO
Chris
N9LLO
-
Tom in D.C.
- Posts: 3859
- Joined: Tue Sep 04, 2001 4:00 pm
- What radios do you own?: Progreso soup can with CRT
Re: OT - Thales Programming Cable Diagram
Chris,
I've been in the Yahoo group since you started it. I'm in the middle of
building my own programming cable, just to prove it can be done. Getting
the pin board set up is a chore, even with the hole blanks I've gotten in
from Thales with the connection shell. Someone should find out why they
didn't put the three connections in line in the same row for
programming instead of the way they did it with the ground all the way
at the top.
Regards,
I've been in the Yahoo group since you started it. I'm in the middle of
building my own programming cable, just to prove it can be done. Getting
the pin board set up is a chore, even with the hole blanks I've gotten in
from Thales with the connection shell. Someone should find out why they
didn't put the three connections in line in the same row for
programming instead of the way they did it with the ground all the way
at the top.
Regards,
Tom in D.C.
